DEPOSITO, ASIENTO

125 DUKE ORANGE ABS 2015 · 42 posición(es) de pieza.

DESPIECE · DEPOSITO, ASIENTO

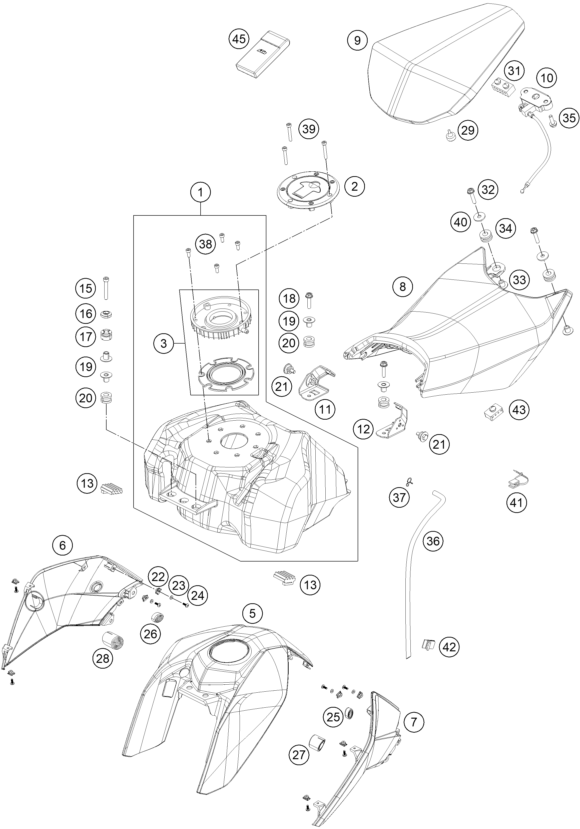

Plano de despiece: DEPOSITO, ASIENTO, hoja 1 1 2 3 5 6 7 8 9 10 11 12 13 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 38 39 40 41 42 43 45
Hoja 1

Cada globo enlaza con la ficha de la pieza que señala.

DEPÓSITO DE GASOLINA Ref. 90607013144
346,15 € En stock
TAPA DEL DEPÓSITO Ref. 90607008000
42,00 € En stock
PIEZA DEPÓSITO BRIDA HERMÉTICA Ref. 90107008144
28,25 € En stock
COVER FUEL TANK TOP ORANGE Ref. 9010804900004
118,15 € En stock
COVER FUEL TANK R/S BLACK MAT Ref. 9010805100047
73,75 € En stock
COVER FUEL TANK L/S BLACK MAT Ref. 9010805000047
73,75 € En stock
SEAT Ref. 91207040000
106,40 € En stock
PASSENGER SEAT Ref. 90107047000
75,60 € En stock
SEAT UNLOCK SOZIUS Ref. 90107050000
22,55 € En stock
MOUNTING BRACKET R/S -SEAT Ref. 90107040020
2,60 € En stock
MOUNTING BRACKET L/S -SEAT Ref. 90107040010
2,60 € En stock
TANK REST RUBBER Ref. 90107013003
2,95 € En stock
AH SCREW M6X40 Ref. 90107036000
1,95 € En stock
TORNILLO DE COLLARÍN HEXAGONAL Ref. J025060406
1,10 € En stock
SPECIAL WASHER F. M6 D-20MM Ref. 90108045000
2,90 € En stock
GROMMET TOP COVER Ref. 90107013004
1,85 € En stock
TORNILLO DE COLLARÍN HEXAGONAL Ref. J025060253
1,10 € En stock
SLEEVE TANK MOUNTING Ref. 90107013005
1,85 € En stock
GROMMET TANK MOUNTING Ref. 90107013006
1,85 € En stock
TORNILLO ESPECIAL Ref. 90107040003
2,95 € En stock
TUERCA DE CHAPA MULTIRRANGO Ref. 90108050001
1,30 € En stock
SHIM PVC 5,3X11,5X1,5 Ref. J125050001
0,60 € En stock
TORNILLO ALOMADO Ref. J031050153
0,80 € En stock
TANK RUBBER PAD SMALL L/S Ref. 90107070000
2,95 € En stock
TANK RUBBER PAD SMALL R/S Ref. 90107071000
2,95 € En stock
TANK RUBBER PAD LARGE L/S Ref. 90107072000
3,35 € En stock
TANK RUBBER PAD LARGE R/S Ref. 90107073000
3,35 € En stock
SEAT RUBBER Ref. 90107046000
1,85 € En stock
SEATRUBBER REAR Ref. 90107046050
2,95 € En stock
SPECIAL SCREW M6X25 Ref. 90107040004
2,10 € En stock
COLLAR BUSHING SEAT BRACKET Ref. 90107040002
1,85 € En stock
RUBBER SLEEVE Ref. 90107040001
1,85 € En stock
TORNILLO DE COLLARÍN HEXAGONAL Ref. J025060203
1,10 € Sin stock
Tube drain cup cap Ref. 90107013007
3,15 € En stock
CLAMP Ref. 90107013008
1,20 € En stock
TORN. CABEZA INTER. Ref. J912050101
1,10 € Sin stock
AH SCREW M5X28 Ref. J912050283
1,10 € En stock
WASHER 7X22X2MM Ref. J126072220
0,60 € En stock
CABLE TIE 190MM Ref. 90603096000
1,85 € En stock
BRACKET DRAIN TUBE CPL. Ref. 90107029000
2,65 € En stock
SEAT RUBBER Ref. 91207046000
1,85 € En stock
TOOLKIT Ref. 90529099000
30,60 € En stock
