DESPIECE DE HORQUILLA

690 Enduro R 2020 · 42 posición(es) de pieza.

DESPIECE · DESPIECE DE HORQUILLA

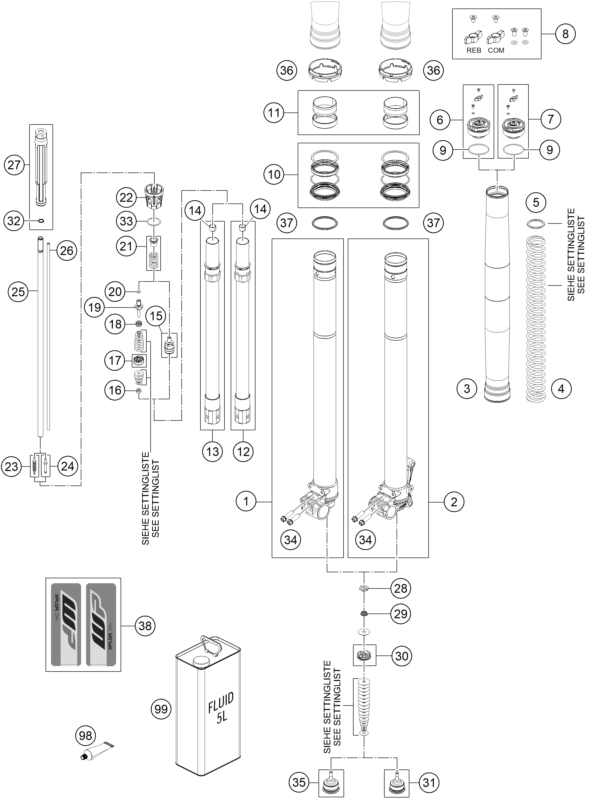

Plano de despiece: DESPIECE DE HORQUILLA, hoja 1 1 2 3 4 5 5 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 98 99
Hoja 1

Cada globo enlaza con la ficha de la pieza que señala.

Axle Clamp R/S + Tube D48mm 35 Ref. 48601713S1
319,00 € En stock
Axle Clamp L/S + Tube D48mm 35 Ref. 48601712S1
319,00 € En stock
Fork outer tube 49,13x577 dt54 Ref. 48600736
224,35 € En stock
Fork spring set Ref. 91410143
90,40 € En stock
ARANDELA DE PRETENSADO 43X35X1,5 Ref. 48600458
3,69 € Sin stock
ARANDELA DE PRETENSADO 43X35X3,5 Ref. 48600457
3,69 € Sin stock
ARANDELA DE PRETENSADO 43X35X2,5 Ref. 48600456
3,69 € Sin stock
Screw cap M51x1,5 rebound cpl. Ref. 48601960S
51,30 € En stock
Screw cap M51x1,5 compression Ref. 48601961S
51,30 € En stock
Adjuster kit screw cap Ref. RP10021
10,00 € En stock
TORICA Ref. 48600048
1,25 € En stock
Sealkit 48mm SKF black Ref. RP10012
50,15 € Sin stock
Guide bushing set fork 48mm Ref. R14047
22,10 € Sin stock
Tube, including screw sleeve w Ref. 48600763S5
98,20 € En stock
Tube with screwsleeve Ref. 48600763S6
98,20 € En stock
CASQUILLO GUÍA P. VARILLA DEL PISTÓN Ref. 48600430
6,05 € Sin stock
Fijación de compresión cpl. Ref. 48601843S
23,75 € En stock
TUERCA M6x0.5 Ref. 40540486
3,05 € En stock
Midvalve piston assembly d23 Ref. 48602002S
16,10 € En stock
Spring (11,4) 0,4-8 valve Ref. 48600382
3,05 € En stock
Tap 6x46 rebound Ref. 48600576
8,45 € En stock
JUNTA TÓRICA Ref. 48600299
0,85 € En stock
Spring (13,9) 37-32 rebound cp Ref. 48600578S
16,10 € En stock
Spring retainer 27,08x43x45 Ref. 48601298
14,05 € En stock
Needle 4,5x43,6 cpl. Ref. 48600277S
7,20 € En stock
Needle 4,5x38,2 cpl. Ref. 48601558S
7,20 € En stock
Piston rod 12x518 Ref. 48601956
76,50 € En stock
Adjuster Tube L488.5 Ref. 48601957
18,90 € En stock
hydrostop l205 d31,9 cpl. Ref. 48601958S
34,10 € En stock
TUERCA M6X0,5 D-2 Ref. 48600163
3,05 € En stock
Spring (8,5) l6,5 valve Ref. 48600202
3,05 € En stock
Piston 6x27,3x9 compression cp Ref. 48601934S
16,10 € En stock
Screw cap M29,3x1 OC split cpl Ref. 48601553S
16,10 € En stock
O-ring 11x2,5 NBR70 PTFE yello Ref. 04500003
0,85 € En stock
Arandela 27,5x33x0,3 Ref. 48601702
1,80 € En stock
Tornillo Ref. 0025080256
2,84 € Sin stock
Screw cap M29,3x1 Ref. 48601980S
16,10 € En stock
Fork protection ring 60,1mm Ref. 48601948
6,10 € En stock
Stroke indicator 48mm red Ref. 48602007
5,00 € En stock
sticker Xplor OC 100x46 Ref. 52000281SET
20,80 € Sin stock
Seal Grease Ref. T14034
32,37 € Sin stock
ACEITE HORQUILLA Ref. 48601166S1
83,10 € En stock
