DESPIECE DE AMORTIGUADOR

690 RALLY FACTORY REPLICA 2008 · 67 posición(es) de pieza.

DESPIECE · DESPIECE DE AMORTIGUADOR

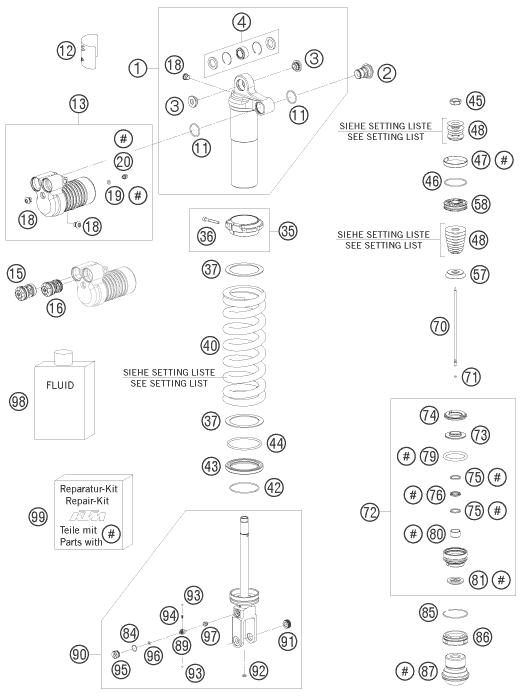

Plano de despiece: DESPIECE DE AMORTIGUADOR, hoja 1 1 2 3 4 11 12 13 15 16 18 19 20 35 36 37 40 40 40 42 43 44 45 46 47 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 57 58 70 71 72 73 74 75 76 79 80 81 84 85 86 87 89 90 91 92 93 94 95 96 97 98 99
Hoja 1

Cada globo enlaza con la ficha de la pieza que señala.

MONOSHOCK CASE TOP Ref. 50180612S1
347,50 € Sin stock
BOLT M20X1 05 Ref. 46180413
24,85 € En stock
CASQUILLO SEPARADOR KGW 10X24 Ref. 46180010
7,45 € En stock
CASQUILLO SEPARADOR KGW 10X24 Ref. 46180010
7,45 € En stock
O-ring 25x2 NBR70 Ref. 46180425
1,05 € En stock
Sticker WP PDS 62x100 Ref. 52000085
4,50 € En stock
EXPANSION TANK CPL. 07 Ref. 50180611S
312,00 € Sin stock
DCC LOW-SPEED SXS CONTROL Ref. 50180590S
165,50 € En stock
DCC HIGH-SPEED NR2 CONTROL Ref. 50180586S2
279,50 € En stock
PLUG ALU M10X1 CPL. Ref. 40140014S
11,15 € En stock
ARO TORICO NBR 5,28X1,78 Ref. 46810893
0,85 € En stock
PLUG SCREW M5X6 CPL. Ref. 36120151S
7,50 € En stock
SPRING RET. (SCREW) M56X1 ANO. Ref. 50180582S
29,00 € En stock
TORNILLO AH M5X30 DIN912 Ref. 50180327
2,90 € En stock
ARANDELA INTERMEDIA 50X1,5 Ref. 50180226
6,95 € En stock
SPRING 97N/MM L250 TITANLOOK Ref. 91210044
101,70 € En stock
SPRING 62 92-250 d13 TITANLOOK Ref. 91210043
104,85 € Sin stock
SPRING 88N/MM L250 TITANLOOK Ref. 91210042
126,00 € Sin stock
CIRCLIP 58.2x2 Ref. 50180273
3,35 € En stock
Spring retainer 61,5x79,1x7,5 Ref. 50180607S
24,20 € Sin stock
JUNTA TÓRICA Ref. 50180352
2,75 € En stock
TUERCA VASTAGO M16X1 Ref. 50180141
8,65 € En stock
ARO PISTON WP 44,17X1,78 Ref. 50180099
2,75 € En stock
CASQUILLO DEL AMORT. Ref. 50180135
12,20 € En stock
ARANDELA 16X28X0,30 Ref. 50180072
1,55 € En stock
ARANDELA 16X30X0,30 Ref. 50180073
1,80 € En stock
ARANDELA 16X32X0,30 Ref. 50180074
1,80 € En stock
ARANDELA 16X34X0,30 Ref. 50180075
1,80 € En stock
ARANDELA 16X36X0,30 Ref. 50180076
1,80 € En stock
ARANDELA 16X38X0,30 Ref. 50180077
1,80 € En stock
ARANDELA 16X40X0,30 Ref. 50180078
2,05 € En stock
ARANDELA 16X42X0.25 Ref. 50180070
2,05 € En stock
ARANDELA 16X36X0,25 Ref. 50180067
1,80 € En stock
ARANDELA 16X28X0,25 Ref. 50180063
1,55 € En stock
ARANDELA 16x34x0.2 Ref. 50180057
1,80 € En stock
ARANDELA 16x32x0.2 Ref. 50180056
1,80 € En stock
SHIM 16X26X0,30 Ref. 50180040
1,55 € En stock
SHIM 16X25X0,30 Ref. 50180039
1,55 € En stock
SHIM 16X24X0,30 Ref. 50180038
1,55 € En stock
ARANDELA 16X23X0,30 Ref. 50180037
1,55 € En stock
Rebound disc 16x43x8 h5 Ref. 50180421
13,05 € En stock
PISTON 6+6X7/4,5 Ref. 50180197
29,00 € En stock
NEEDLE L-171 Ref. 50180513
6,35 € En stock
JUNTA TÓRICA Ref. 46811265
2,05 € En stock
ADAPTOR D50 H29 CPL. Ref. 50180435S1
43,35 € Sin stock
Washer 18,5x43,7x6 Ref. 50180113
6,35 € En stock
Rubber pad rebound 27x48x8 NBR Ref. 50180107
4,00 € En stock
TORICA 22,55X1,5 Ref. 50180102
5,20 € En stock
SEAL RING QUAD 17.12X2.62 80SH Ref. 50180593
3,75 € Sin stock
JUNTA TÓRICA Ref. 50180103
1,25 € En stock
CASQUILLO GUÍA Ref. 46180119
5,00 € En stock
RETEN 1835 Ref. 50180082
9,10 € En stock
ARO TORICO NBR 12X1 Ref. 46180013
0,85 € En stock
CIRCLIP 53X1,75 Ref. 50180126
3,35 € En stock
RESERVOIR CAP D-50 SXS 07 Ref. 50180580
47,35 € Sin stock
GOMA TOPE AMORTI. SXS 05 Ref. 50180480
15,70 € En stock
TORNILLO AJUSTE L-15,5 Ref. 46180006
7,10 € En stock
FORK PART W/ SPINDLE CPL. 07 Ref. 50180503S1
383,25 € En stock
Threaded bush M10x1,5 h7,5 Ref. 50180462
11,15 € En stock
Rubber plug 8x3,5 NBR50 Ref. 50180297
2,00 € En stock
BOLA DE ACERO Ref. 40540603
1,80 € En stock
GRUPO DE INCORPORACIÓN MUELLE Ref. 48600028
2,90 € En stock
TORNILLO REGULADOR M16X1 Ref. 46180005
10,15 € En stock
TORICA 4 X1.5 Ref. 50180222
0,85 € En stock
CASQUILLO AJUSTE EXTENSION Ref. 46180016
7,10 € En stock
SHOCK ABSORBER FLUID 5 LT Ref. 50180751S1
83,10 € En stock
REPAIR KIT SXS + 690 RALLY 07 Ref. R12016
60,00 € Sin stock
